Microinverter Replacement in Scottsdale, AZ

Microinverter Replacement is panel-level work. Instead of one large inverter on the wall, many Scottsdale systems have a small inverter bolted to the rail under each panel, converting that panel's power on its own. The advantage is that one failure does not take down the whole system. The drawback is that the failed unit sits under a panel on the roof, often on concrete tile, and getting to it takes care.

How to tell a microinverter has failed

The monitoring app is usually the first clue. Each panel appears as its own tile, and a failed unit shows as gray, blank or zero while its neighbors report normal output. Other signs include a whole row of panels dropping out at once, which can point to a trunk cable or junction problem rather than the micros, or a gateway that has stopped reporting so every panel looks dead even though the system is still producing.

Check the communication first

Before anyone climbs up, we check the gateway or combiner that collects data from the microinverters. Many 'dead' systems are actually working fine and have just lost communication because of a router change, a Wi-Fi password, or interference on the home's wiring. Fixing that is fast and costs far less than replacing hardware.

Get a Free Estimate

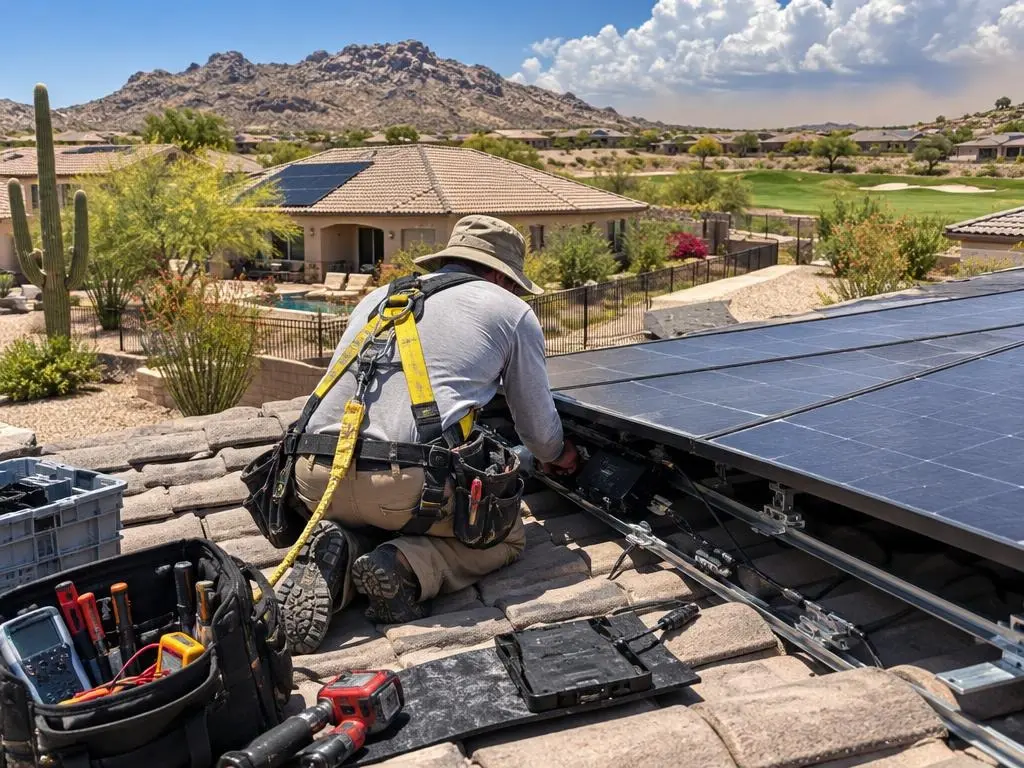

Replacing the unit on a tile roof

Once we know which panels are affected, we plan a path across the tile to reach them, lift or tilt the panel off its clamps, disconnect and remove the failed microinverter, install a compatible replacement and reconnect it to the trunk cable. The panel is reclamped, tiles around the work area are checked, and the new unit is added to the monitoring system so it reports like the rest. If several units have failed or are likely to fail soon, replacing them during one visit saves on repeat roof time.

Warranty and compatibility

Many microinverters carry long manufacturer warranties, and a failed unit inside that period may be replaced at no cost for the part. We document the failure and serial numbers so you can submit a claim. Compatibility matters too: older models may no longer be made, and a newer replacement must work with your panels' power rating, your existing trunk cable and your gateway. When a mix of old and new is not supported, we explain the options before ordering.

Heat and the micros

Microinverters sit in the shaded gap under the panel, which is cooler than the panel surface but still very hot on a summer roof in Scottsdale. Good airflow under the array helps them last, which is one reason pigeon nesting and packed debris matter. During a replacement we clear the area and look for signs of heat stress on connectors.
